JBL BAR 500

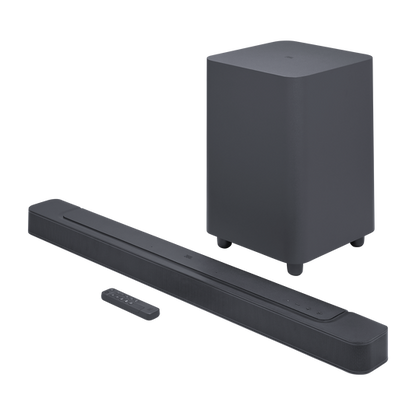

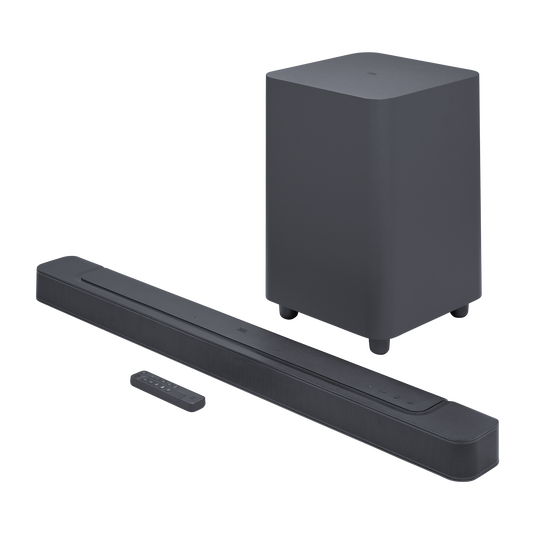

What's on the menu tonight? Movies, music or gaming? The JBL Bar 500 brings your movies to life with MultiBeam™ and Dolby Atmos® 3D surround sound. While PureVoice technology optimizes voice clarity to ensure you never miss a word. Feel the thrilling bass from the wireless 10" subwoofer. And with AirPlay, Alexa Multi-Room Music (MRM) and Chromecast built-in™, you've got over 300 easy streaming options to choose from, whether you want to dance or you're ready to relax. Whatever you're in the mood for, the JBL Bar 500's got you covered.

Power supply 100 - 240V AC, ~ 50/60Hz

Networked standby power < 2.0 W

Operating temperature 0°C - 45 °C

Total speaker power output (Max @THD 1%) 590W

Soundbar output power (Max @THD 1%) 290W

Subwoofer output power (Max. @THD 1%)300 W

Soundbar transducer 4x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters

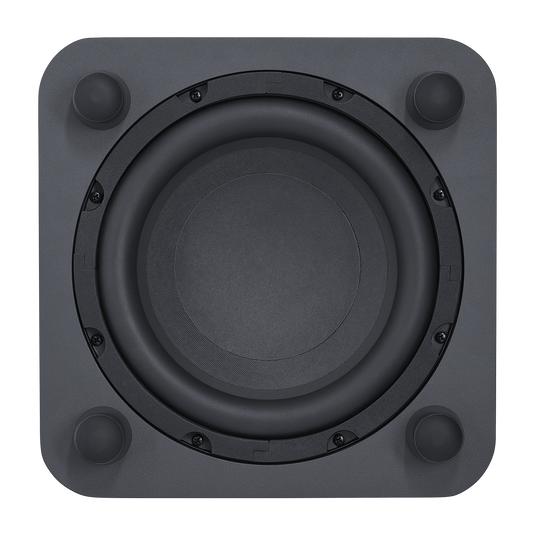

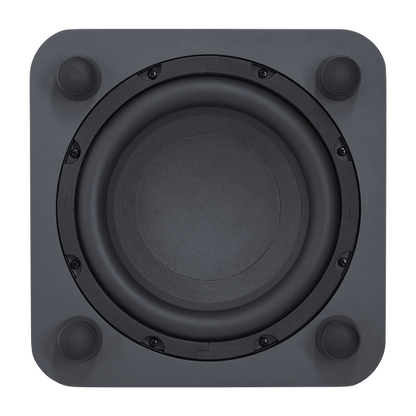

Subwoofer transducer10” (260mm)

Frequency response 35Hz - 20kHz (-6dB)

Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Soundbar dimensions (W x H x D)1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’

Subwoofer dimensions (W x H x D)305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight2.8kg/ 6.2 lbs

Subwoofer weight10 kg / 22 lbs

Packaging dimensions (W x H x D)1105 x 370 x 475 mm/ 43.5" x 14.6" x 18.7"

Packaging Weight16.2 kg / 35.6 lbs

USB portType AUSB

rating 5V DC, 0.5A

Supporting file formatMP3MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate16 - 48 kHz

MP3 bitrate80 - 320 kpbs

Bluetooth version5.0

Bluetooth profileA2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range 2400 MHz – 2483.5 MHz

Bluetooth transmitter power <15 dBm (EIRP)Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power< 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range2406 - 2474MH

2.4G wireless transmitter power＜10dBm (EIRP）

HDMI video input1

HDMI video output (with Enhanced Audio Return Channel, eARC)1

HDMI HDCP version2.3

HDR pass throughHDR10, Dolby Vision

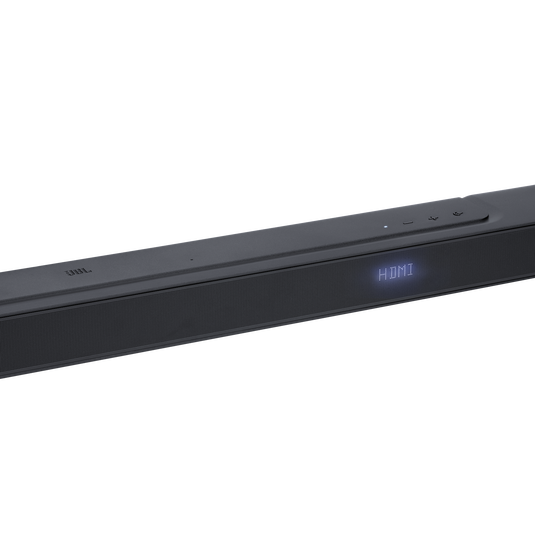

• 1 x Main Soundbar

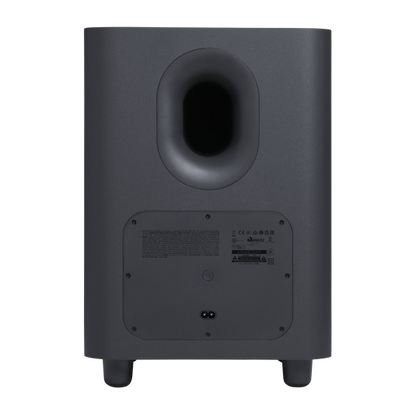

• 1 x Wireless subwoofer

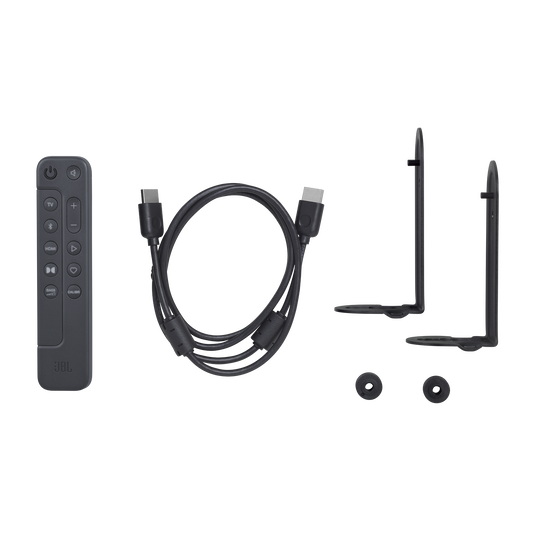

• Remote control with 2 x batteries
• Power cords (up to 8pcs depending on region SKUs)
• 1 x HDMI cable
• 2 x L-shape wall-mount bracket with screws
• Quick start guide
• Safety Instruction and Warranty Card
• Wall mount template
